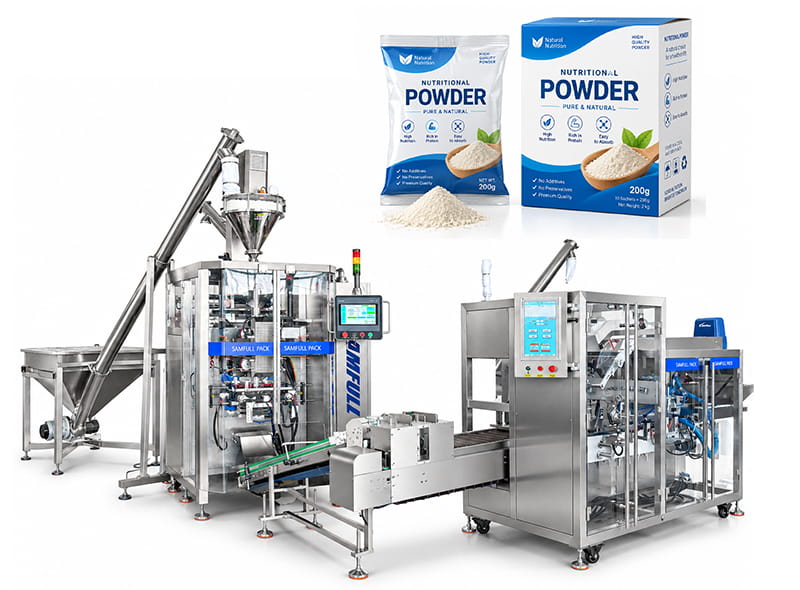

Complete Powder Packing and Cartoning Line

The complete production process can be configured as:

Powder feeding → Auger dosing → Bag forming → Powder filling → Sealing → Cutting → Finished sachet conveying → Automatic cartoning → Hot melt glue sealing → Finished carton output

The project includes two high-speed powder packing machines, with one machine specifically configured to connect directly with the automatic cartoning system. The feeding system was also upgraded with 500L square powder hoppers to support continuous production.

This integrated layout reduces intermediate manual handling between the powder packing process and carton packaging process.

Project Configuration

The original production specification included two high-speed powder packaging machines, while subsequent engineering update sheets specify the SF-2.0S high-speed powder machine and the connection of one machine to the cartoner.

High Speed Automatic Powder Packing Machine

The primary packaging section uses a high-speed vertical powder packing machine combined with an auger filling system.

For powder products, stable feeding and dosing are important because fine powders may generate dust and can behave differently from ordinary granular materials.

For this Colombia project, the powder filling system uses a 50L dosing hopper with SUS304 product-contact surfaces. A screw feeding system automatically transfers powder into the dosing unit.

The complete configuration allows powder feeding, quantitative dosing and bag packaging to operate continuously.

200g, 300g and 500g Back-Seal Powder Bags

For the main carton-packaging products, the machine produces 200g, 300g and 500g back-seal bags.

The production specification defines:

• Film width: 330mm

• Bag width: 150mm

• Bag length: 210mm

• Top seal: 15mm

• Bottom seal: 15mm

• Center seal: 15mm

These 150 × 210mm powder bags are also the packages designed to enter the downstream automatic cartoning machine.

This allows the packing machine and cartoner to operate as one continuous production line.

1000g Gusset Bag Powder Packaging

In addition to the smaller back-seal bags, the high-speed powder machine is also configured for 1000g powder packaging.

The 1kg package uses a gusset bag structure with:

• Film width: 370mm

• Bag width: 115mm

• Bag length: 310mm

• Gusset width: 55mm

A separate auger screw is provided for the 1kg packaging requirement.

This allows the same project to cover both smaller powder packages and larger 1kg packages.

Automatic Cartoning at 50–60 Boxes Per Minute

A major part of this Colombia project is the integration of the powder packing machine with a fully servo automatic cartoning machine.

The cartoner was specifically required to match the production output of the high-speed powder packaging machine, with a target operating speed of approximately:

50–60 boxes per minute.

Instead of collecting finished powder bags manually and loading them into cartons separately, packaged products are transferred directly from the primary packaging machine toward the cartoning section.

This significantly increases the automation level of the complete line.

Fully Servo Automatic Cartoning Machine

The secondary packaging section adopts a fully servo-controlled automatic cartoning machine.

Its main functions include:

carton feeding → carton opening → packaged product loading → carton forming → hot melt glue sealing → finished carton discharge

The production specification requires key control components such as the PLC, touchscreen and servo control system to use Siemens components, while other electrical and pneumatic components use specified brands including Schneider and AirTAC.

This provides a more standardized control architecture for the complete packaging line.

Why Integrate Powder Packing with Automatic Cartoning?

For manufacturers with increasing production volume, buying a high-speed powder packing machine alone does not necessarily eliminate the labor bottleneck.

If finished bags still need to be:

manually collected → manually arranged → manually loaded into cartons → manually closed

the secondary packaging process can become the limiting factor of the entire production line.

By connecting the high-speed powder packaging machine directly to an automatic cartoner, the Colombia customer automated both primary and secondary packaging.

The result is a more complete solution:

automatic powder feeding + automatic dosing + automatic bagging + automatic conveying + automatic cartoning + automatic glue sealing

This is particularly suitable for factories seeking to expand production while reducing repetitive manual packaging operations.

Customized Powder Packaging Solution for Colombia

This project was not based on one standard machine.

The complete solution was developed around the customer's actual production requirements, including:

• two high-speed powder packaging machines;

• multiple packing weights;

• 200g / 300g / 500g back-seal bags;

• 1000g gusset bags;

• auger powder dosing;

• 500L automatic powder feeding hoppers;

• static dust removal;

• additional bag formers;

• 15kW compressed-air system;

• direct connection between one powder machine and the cartoner;

• fully servo automatic cartoning;

• 50–60 boxes/min cartoning speed;

• Nordson hot melt glue sealing;

• Siemens control system;

• Spanish-language operation.

The machines use 220V, 60Hz, three-phase power, matching the electrical configuration specified for this Colombia project.

Complete Automatic Powder Packing Line

For customers looking beyond a standalone packing machine, SAMFULL can develop an integrated powder packaging line according to the actual product, packaging format and downstream automation requirements.

A typical solution can include:

Powder feeding system
↓
Auger filler
↓
High-speed vertical powder packing machine
↓
Finished product conveying
↓
Automatic cartoning machine
↓
Hot melt glue sealing
↓
Finished carton output

The equipment configuration should be determined according to the actual powder characteristics, target filling weight, bag dimensions, required speed, carton dimensions and factory layout.

FAQ

What machine is used for high-speed powder packaging?

For powder products, a high-speed vertical packing machine combined with an auger dosing system is a common solution. This Colombia project uses high-speed powder machines with automatic screw feeding and auger filling.

Can one powder packing machine handle different bag weights?

Yes, depending on the machine configuration and product characteristics. This project includes configurations for 200g, 300g, 500g and 1000g powder packages.

Can the powder packing machine connect directly to a cartoning machine?

Yes. In this project, one of the two high-speed powder machines was specifically configured to connect directly with the automatic cartoner.

What is the speed of the automatic cartoning machine?

The cartoner for this project was specified to match the high-speed powder packaging machine at approximately 50–60 boxes per minute.

What type of carton sealing system is used?

The cartoner uses a hot melt glue sealing system, with Nordson specified for the hot melt glue equipment. 哥伦比亚装盒机生产单.xlsXLS

Can the machine pack 1kg powder?

Yes. The project includes a dedicated 1000g gusset bag configuration and an additional auger screw for the 1kg filling requirement.

Does the system support Spanish?

Yes. The packaging machine specification includes Chinese, English and Spanish interfaces. 哥伦比亚高速粉末机.xlsXLS

Is the powder feeding system automatic?

Yes. The project uses screw feeding systems, and the feeding hoppers were upgraded to 500L square hoppers for the two high-speed machines.
