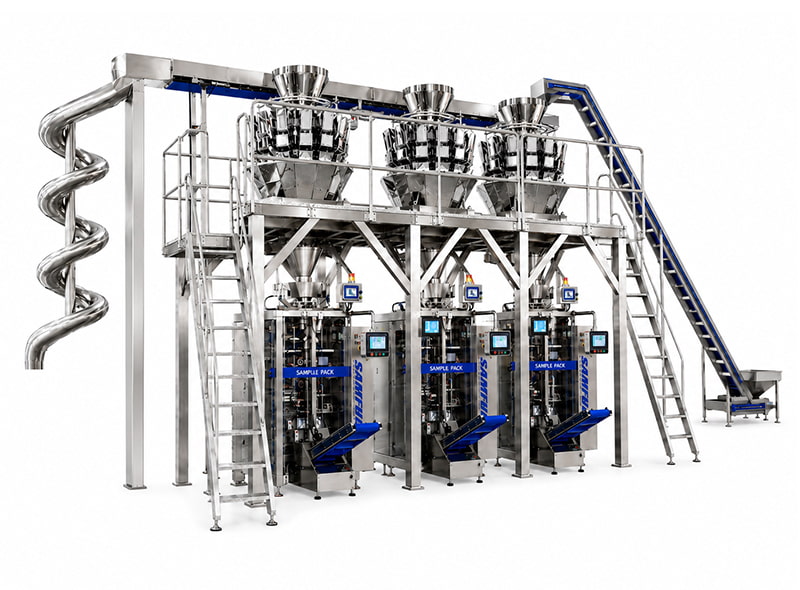

Up to 1000 Bags/Min High-Speed Automatic Snack Feeding & Packaging Line for Chips and Puffed Snacks

Videos

Standard Packaging Specifications

Production Speed Range

The actual production speed depends on product type, product size, target weight, bag size, film material, sealing stability and final line configuration.

Reference speed:

For high-capacity snack factories, the complete line can be expanded with multiple weighing and packing units.

Maximum total output: up to 1000 bags/min.

Working Process

The whole snack feeding and packaging line normally works as follows:

1. Snack products are loaded into the feeding system.

2. The bucket elevator gently lifts the product to the upper distribution conveyor.

3. The top distribution conveyor sends product to each multihead weigher.

4. The material return system helps control extra product and reduce overflow.

5. Each multihead weigher weighs the product accurately.

6. The weighed product enters the VFFS packaging machine.

7. The machine automatically forms bags, fills product, seals, cuts and outputs finished bags.

8. Nitrogen flushing can be added to protect crispy snack products.

9. Finished bags are discharged by conveyors.

10. Metal detector, checkweigher and rotary collection table can be added after packing.

Main System Configuration

1. Snack Feeding System

The feeding system is designed to lift snack products from the lower feeding area to the upper distribution section.

For fragile products such as potato chips and puffed snacks, smooth feeding is important to reduce product breakage during production.

Common feeding configuration includes:

• Bucket elevator

• Inclined conveyor

• Food-grade belt

• Stainless steel contact parts

• Large feeding capacity

• Gentle product transfer

• Easy cleaning and maintenance

2. Top Distribution Conveyor

The top distribution conveyor is used to distribute snack products to different weighing and packing units.

This design allows one complete feeding system to serve multiple packaging units, improving production efficiency and reducing manual feeding work.

The conveyor length, feeding points and layout direction can be customized according to the customer’s factory space and production capacity requirement.

3. Material Return System

For lightweight snack products, unstable feeding may cause product accumulation or uneven distribution. The material return system helps manage extra product and improve feeding balance.

It helps to:

• Reduce product overflow

• Improve feeding stability

• Reduce manual intervention

• Keep each multihead weigher supplied evenly

• Improve overall line efficiency

4. Multihead Weigher

Each packing unit can be equipped with an independent multihead weigher. According to product size, target weight, speed requirement and weighing accuracy requirement, Samfull can provide 10-head, 14-head, 16-head, 20-head or 24-head multihead weighers.

For standard snack packaging, 10-head or 14-head weighers are commonly used. For higher-speed production or better weighing combination accuracy, 16-head, 20-head or 24-head weighers can be selected.

Main features:

• 10–24 heads optional

• Suitable for lightweight and irregular snack products

• 2.5L bucket or larger bucket volume optional

• Stainless steel 304 contact parts

• Stable weighing accuracy

• Better combination efficiency for high-speed production

• Suitable for chips, puffed snacks, fried snacks and extruded snacks

5. VFFS Vertical Packaging Machine

The VFFS packaging machine automatically completes bag forming, filling, sealing, cutting and finished bag output.

It is suitable for pillow bags and back seal bags, which are widely used in the snack packaging industry.

Main features:

• Automatic film forming

• Product filling

• Back sealing

• Cross sealing and cutting

• Photoelectric eye tracking

• Touch screen operation

• Stable film pulling

• Good bag appearance

• Suitable for laminated roll film

• Optional nitrogen flushing

• Optional date coding printer

6. Nitrogen Flushing System

Nitrogen flushing is commonly used in potato chips and puffed snack packaging. It helps reduce oxidation, protect crispy texture and improve product shelf life.

Samfull can integrate nitrogen flushing into the VFFS packaging machine according to the product and packaging requirement.

7. Finished Bag Conveyor and Collection System

After packaging, finished bags can be discharged by finished product conveyors.

According to the factory layout, finished bags can be sent to:

• Rotary collection table

• Metal detector

• Checkweigher

• Manual packing area

• Cartoning machine

• Case packing system

• Secondary packaging line

Key Advantages

High-Speed Production

The complete line can reach up to 1000 bags/min, depending on product type, bag weight, bag size and final machine configuration.

Complete Automatic Line

The system integrates feeding, distribution, weighing, packing, nitrogen flushing, conveying and collection, reducing manual operation and improving production efficiency.

Suitable for Fragile Snacks

The feeding and distribution system can be optimized for fragile snack products to reduce crushing and product breakage.

Flexible Line Configuration

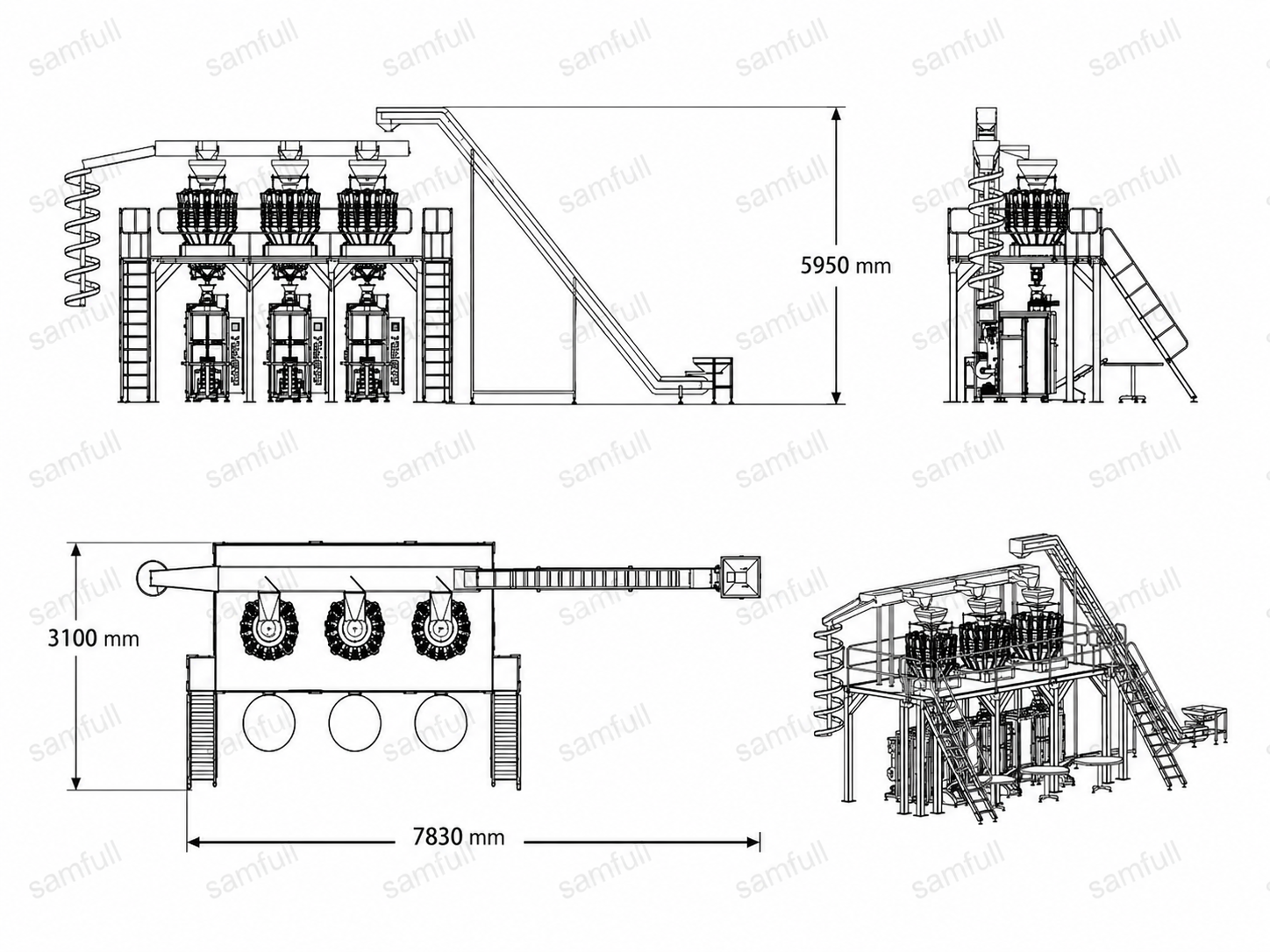

The machine layout, feeding direction, platform size, conveyor length, weighing system and finished bag output direction can be customized according to factory layout.

10–24 Head Multihead Weigher Optional

Different multihead weigher configurations are available to match different product sizes, weighing accuracy and speed requirements.

Good Bag Appearance

The VFFS machine provides stable bag forming, accurate bag length control and neat sealing, suitable for retail snack packaging.

Optional Quality Control

Metal detector, checkweigher, date printer, nitrogen flushing and secondary packaging equipment can be integrated according to production requirements.

Optional Devices

The snack feeding and packaging line can be equipped with:

• Bucket elevator

• Inclined conveyor

• Top distribution conveyor

• Material return system

• 10–24 head multihead weigher

• Working platform and stairs

• VFFS packaging machine

• Nitrogen flushing system

• Date coding printer

• Metal detector

• Checkweigher

• Finished bag conveyor

• Rotary collection table

• Air compressor

• Cartoning machine

• Case packing system

• Secondary packaging system

Technical Reference

Applications in Snack Factories

This high-speed snack feeding and packaging line is suitable for snack manufacturers that need continuous production and higher output.

Typical applications include:

• Potato chips factory

• Puffed snack factory

• Tortilla chips and nachos factory

• Corn snack production plant

• Fried snack production line

• Extruded snack manufacturer

• OEM snack packing factory

• Food co-packing company

For factories with multiple product sizes or different bag weights, the line can be designed with flexible settings to support fast changeover and stable operation.

Why Choose Samfull

Samfull provides complete automatic packaging solutions for food, powder, granule, liquid, sauce and irregular products.

For snack packaging, we focus not only on machine speed, but also on product protection, feeding stability, weighing accuracy, bag appearance and complete line integration.

With experience in automatic feeding systems, multihead weighing, VFFS packaging, nitrogen flushing, inspection and finished bag conveying, Samfull can provide a practical solution according to product characteristics, capacity requirements and factory layout.

FAQ

What products can this snack packaging line pack?

It can pack potato chips, puffed snacks, crispy snacks, tortilla chips, nachos, corn snacks, fish-shaped snacks, extruded snacks and other lightweight irregular snack products.

What is the maximum speed of this line?

The maximum total output can reach up to 1000 bags/min, depending on product type, bag weight, bag size, film material and final line configuration.

What is the speed of each packing unit?

Each packing unit can usually reach about 75–100 bags/min, depending on product and bag specification.

What type of bag can this line produce?

It is mainly used for back seal bags and pillow bags, which are common in snack packaging.

Can the line add nitrogen flushing?

Yes. Nitrogen flushing can be added for potato chips, puffed snacks and other crispy products to help protect product texture and shelf life.

How many heads can the multihead weigher have?

The multihead weigher can be configured with 10 to 24 heads according to product size, speed requirement and weighing accuracy requirement.

Can metal detector and checkweigher be added?

Yes. Metal detector, checkweigher, date printer, finished bag conveyor and rotary collection table can be integrated into the line.

Can the layout be customized?

Yes. The feeding direction, platform size, conveyor length, machine layout and finished bag output direction can be customized according to the customer’s factory layout.
