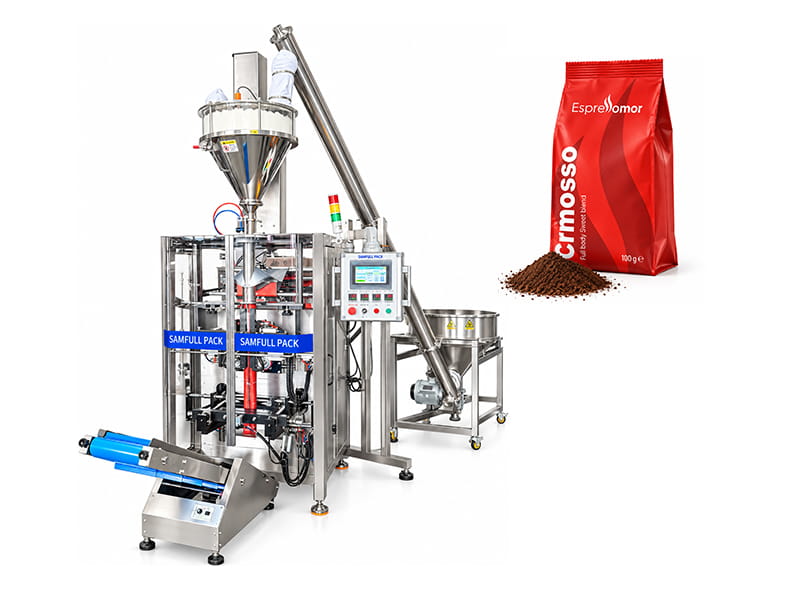

Kenya 100g Gusset Pouch Coffee Powder Packaging Machine Project – Customized Auger Filler
This project is a customized 100g coffee powder packaging machine for a customer from Kenya.
According to the production order, the machine is designed for packing 100g coffee powder with laminated packaging film. It uses an auger screw filling system and forms a gusseted back-seal pouch.
The machine is also customized with a Siemens control system, standard exhaust function, customized bag former, feeding variable-frequency control and mixing variable-frequency control.
Videos:
Project Information
| Item | Specification |
|---|---|
| Country | Kenya |
| Product | Coffee Powder |
| Filling Weight | 100g |
| Machine Model | SN-2.0T |
| Filling Method | Auger Screw |
| Packaging Material | Laminated Film |
| Bag Type | Gusseted Back-Seal Pouch |
| Control System | Siemens |
| Voltage | 220V–240V, 50Hz, Single Phase |
| Cutting Type | Serrated Straight Cut |
| Exhaust | Standard Exhaust |
| Gas Filling | No |
| Language | Chinese & English |
| Quantity | 1 Set |
100g Coffee Powder Packaging Solution
The product for this project is 100g coffee powder.
The production order specifies an auger screw dosing system for filling the coffee powder. The auger filler works together with the vertical packaging machine to complete powder dosing, bag forming, sealing and cutting.
The packaging material used for this project is laminated film.
Customized Gusset Pouch Forming System
The machine is equipped with one customized bag former for producing the required gusseted back-seal pouch.
The confirmed forming specifications are:
Former length: 160 mm
Former width: 70 mm
Gusset width on one side: 45 mm
Center sealing width on one side: 10 mm
Top and bottom sealing width: 15 mm
Total film width: 250 mm
The production order also notes that the packaging film design drawing should be provided.
Auger Filler for 100g Coffee Powder
For this Kenya project, the confirmed filling method is auger screw filling.
The auger filler is matched with the 100g coffee powder packaging application and integrated into the vertical form fill seal packaging machine.
This is the main dosing configuration specified in the production order.
Feeding and Mixing Variable-Frequency Control
The production order includes an additional customization requirement:
Add variable-frequency control for the feeding system and mixing system.
Therefore, this machine includes:
Feeding variable-frequency control
Mixing variable-frequency control
These functions are specifically added according to this project's production requirements.
Electrical and Control Configuration
The machine is configured according to the customer's required power supply:
220V–240V, 50Hz, single phase
The confirmed control and operating configuration includes:
Siemens control system
Chinese and English language
Standard exhaust system
No gas filling
Cutting and Packaging Configuration
The production order specifies:
Bag type: Gusseted back-seal pouch
Cutting: Serrated straight cut
Exhaust: Standard exhaust
Gas filling: None
Packing method: Export wooden case
These configurations are included in the final machine specification.
Project Schedule
According to the production order:
Contract No.: SF20260528
Production order date: July 9, 2026
Scheduled delivery date: August 15, 2026
Machine quantity: 1 set
Project Summary
This Kenya project is a customized 100g coffee powder gusset pouch packaging machine solution.
The confirmed configuration includes:
100g coffee powder packaging
Auger screw filling
Gusseted back-seal pouch
Laminated film
Customized bag former
Siemens control system
220V–240V, 50Hz, single phase
Standard exhaust
Serrated straight cutting
Feeding variable-frequency control
Mixing variable-frequency control
The machine is produced according to the specified bag-forming dimensions and project configuration.
