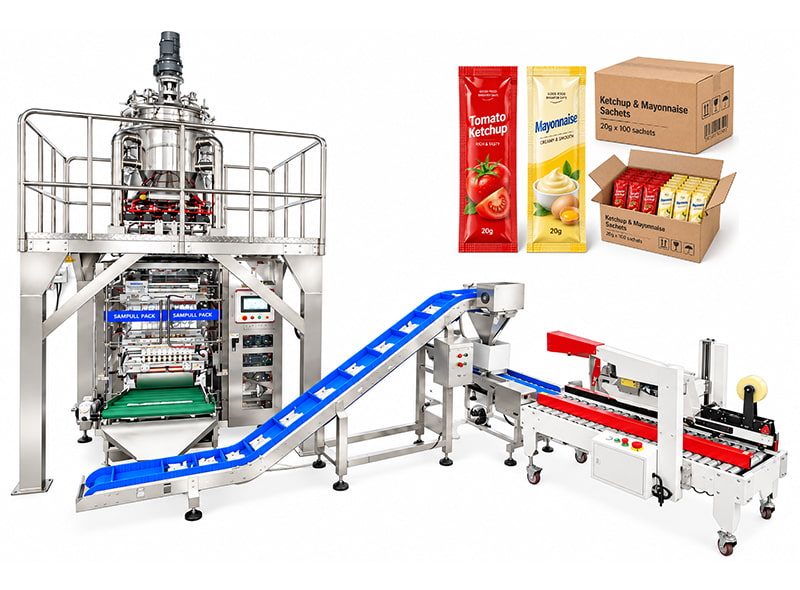

4-Side Seal Liquid Sachet Automatic Counting and Cartoning Line
Product Overview
The 4-Side Seal Liquid Sachet Automatic Counting and Cartoning Line is designed for the secondary packaging of small liquid sachets after primary sachet packing.
This line is especially suitable for 4-side seal sachet products such as ketchup, mayonnaise, salad dressing, chili sauce, soy sauce, honey, syrup and other liquid or semi-liquid products packed in small sachets.
After the sachets are produced by the multi-lane packing machine, they are transferred by the counting conveyor, grouped according to the preset quantity, automatically dropped into cartons, and then conveyed to the carton sealing section.
This system helps reduce manual counting and manual loading while improving packing efficiency and carton quantity consistency.
Videos
Suitable Products
This line is suitable for 4-side seal small sachet liquid products, including:
Tomato ketchup sachets
Mayonnaise sachets
Chili sauce sachets
Salad dressing sachets
Soy sauce sachets
Vinegar sachets
Honey sachets
Syrup sachets
Seasoning sauce sachets
Other liquid or semi-viscous sachet products
Main Functions
The line is mainly used for:
Finished sachet conveying
Automatic sachet counting
Batch grouping
Automatic carton loading
Carton transfer
Automatic carton sealing
It is typically connected after a multi-lane liquid sachet packing machine.
Working Process
The typical workflow is:
Finished 4-side seal sachets are discharged from the primary packing machine
Sachets are transferred to the counting conveyor
The system counts sachets according to the preset quantity
Grouped sachets are automatically released into the carton
Filled cartons are transferred by conveyor
Cartons enter the carton sealing machine for top and bottom sealing
This creates a more efficient from sachet to carton packaging process.
Main Features
1. Designed for small liquid sachets
This line is specially developed for 4-side seal liquid sachets, making it suitable for high-output small-pack applications.
2. Automatic counting
The counting conveyor can collect sachets based on the set quantity, helping ensure more consistent carton filling.
3. Reduced manual labor
Instead of manually collecting and counting sachets, the line automates grouping, carton loading and carton transfer.
4. Integrated secondary packaging
The system combines counting, loading, transferring and sealing into one secondary packaging solution.
5. Suitable for multi-lane packing output
The line can be matched with multi-lane sachet packaging machines to handle the high output of small sachets more efficiently.
6. Food-grade construction
The system is built with SUS304, and product-contact related sections can be configured according to the application requirement.
Main Parameters
Table 1 – Line Type
| Parameter | Specification |
|---|---|
| Product Name | 4-Side Seal Liquid Sachet Automatic Counting and Cartoning Line |
| Application | Secondary packaging for liquid sachet products |
| Suitable Sachet Type | 4-side seal sachets |
| Product Form | Liquid / semi-liquid sachets |
| Line Function | Counting, grouping, carton loading, conveying and sealing |
Table 2 – Suitable Products
| Parameter | Specification |
|---|---|
| Typical Products | Ketchup, mayonnaise, chili sauce, salad dressing, soy sauce, syrup, honey |
| Product Format | Small sachets |
| Example Sachet Weight | 20 g |
| Example Sachet Size | 45 × 135 mm (W × L) |
Table 3 – Counting Conveyor
| Parameter | Specification |
|---|---|
| Conveyor Type | Blue cleated counting conveyor |
| Function | Conveying and counting finished sachets |
| Counting Mode | Preset quantity counting |
| Example Counting Logic | Automatic grouping by set quantity |
| Quantity | 1 set |
Table 4 – Carton Loading Section
| Parameter | Specification |
|---|---|
| Function | Automatic sachet dropping into carton |
| Loading Method | Grouped sachets enter carton automatically |
| Carton Filling Logic | Based on preset sachet quantity |
| Example Carton Quantity | 100 sachets/carton |
Table 5 – Transfer Conveyor
| Parameter | Specification |
|---|---|
| Function | Transfer cartons between loading and sealing sections |
| Conveyor Sections | 3 sections |
| Material | SUS304 |
| Direction Wheel | Included |
| Quantity | 3 sections |
Table 6 – Carton Type
| Parameter | Specification |
|---|---|
| Carton Type | Standard corrugated shipping carton |
| Top Sealing | Tape sealing |
| Bottom Sealing | Tape sealing |
| Carton Size | To be confirmed according to final carton design |
| Packing Layout | Sachets grouped and loaded into carton |
Table 7 – Electrical Standard
| Parameter | Specification |
|---|---|
| Power Supply | 3 Phase, 400V, ±10%, 50Hz |
| HMI / Label Language | English labels preferred |
| Electrical Box Labels | English |
| Touch Screen Operation | With control setting for counting/grouping |
Table 8 – Material & Quantity
| Parameter | Specification |
|---|---|
| Main Material | SUS304 |
| Product Contact Material | Can be configured as needed |
| Counting Conveyor Quantity | 1 set |
| Carton Transfer Conveyor Quantity | 3 sections |
| Carton Erector | 1 set |
| Carton Sealer | 1 set |
Optional Configuration
| Option | Description |
|---|---|
| Carton Erector | Automatically forms cartons before loading |
| Carton Sealer | Automatically seals top and bottom of cartons |
| Counting Conveyor | Automatic sachet counting before loading |
| Carton Transfer Conveyor | Connects loading and sealing machines |
| English HMI | English touch screen interface |
| English Electrical Labels | English labels inside electrical box |
| SUS316 Contact Parts | Available for product-contact related sections if required |
| Customized Carton Size | Line can be adjusted according to final carton dimensions |
Why Choose This Line
For customers producing small liquid sachets in large quantities, the difficulty is often not only in the primary sachet filling and sealing, but also in the secondary packaging stage.
Without an automatic cartoning line, operators usually need to:
collect sachets manually
count sachets manually
load cartons manually
transfer cartons manually
This line helps solve those problems by creating a smoother and more standardized end-of-line packaging process.
It is a practical solution for food manufacturers and co-packers handling high-output 4-side seal sachet packaging.
Typical Matching Machine
This cartoning line is commonly used together with:
Multi-lane liquid sachet packing machine
4-side seal sachet packaging machine
Ketchup sachet packing machine
Mayonnaise sachet packing machine
Sauce sachet filling and packing machine
FAQ
What is a 4-side seal liquid sachet cartoning line?
A 4-side seal liquid sachet cartoning line is a secondary packaging system used to count, group, load and seal cartons for finished small liquid sachets.
What products can this line handle?
It can handle ketchup, mayonnaise, chili sauce, salad dressing, soy sauce, honey, syrup and other liquid or semi-liquid sachet products.
Can the line count sachets automatically?
Yes. The line includes a counting conveyor that groups sachets according to the preset quantity before carton loading.
Can this line work with a multi-lane sachet machine?
Yes. It is commonly connected after a multi-lane sachet packing machine to handle the high output of small sachets.
Is carton sealing included?
Yes. The line can include carton erecting, carton transfer and carton sealing sections according to the project requirement.
Short Product Description
The 4-Side Seal Liquid Sachet Automatic Counting and Cartoning Line is designed for the secondary packaging of ketchup, mayonnaise and other small liquid sachets. It can automatically count finished sachets, load them into cartons, transfer cartons and complete carton sealing, making it a practical end-of-line solution for high-output sachet packaging.
