Customer Requirements

The customer needed a vertical packaging solution suitable for:

• Potato chips

• Corn chips

• Crispy snacks

• Extruded snacks

• Similar free-flowing snack products

Key requirements included:

• Multiple bag size capability

• Accurate weighing

• Nitrogen flushing

• Stable continuous operation

• Date coding

• Spanish-language interface

• Flexible product changeover

• Compatibility with laminated and aluminum-coated films

Machine Configuration

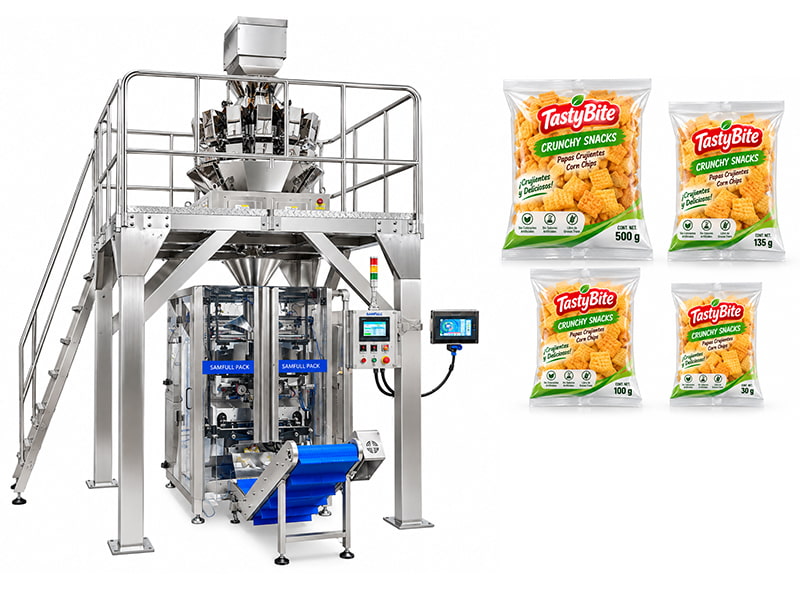

The supplied system is based on a 3.0T vertical form fill seal packaging machine integrated with a multihead weighing system.

Main Specifications

• Main machine: 3.0T vertical packaging machine

• Control system: Siemens

• Weighing system: 14-head multihead weigher

• Hopper volume: 2.5 L

• Bag type: Pillow bag / back-sealed bag

• Packaging film: Laminated film and aluminum-coated film

• Power supply: 3-phase, 220V, 60Hz

• Interface languages: Chinese, English, Spanish

• Coding system: 3-line ribbon coder

• Coding content: Numbers, 26 English letters, MFG and EXP

• Air exhaust: Standard sponge air-exhaust system

• Gas flushing: Nitrogen flushing system

• Export packing: Export wooden case

Four Bag Size Configurations

The machine was supplied with 4 bag formers for different packaging sizes.

500 g Pack

• Film width: 590 mm

• Bag size: 280 × 400 mm

• Reference speed: 18–22 bags/min

100 g Pack

• Film width: 510 mm

• Bag size: 240 × 355 mm

• Reference speed: 22–26 bags/min

135 g Pack

• Film width: 454 mm

• Bag size: 212 × 310 mm

• Reference speed: 28–32 bags/min

30 g Pack

• Film width: 314 mm

• Bag size: 142 × 230 mm

• Reference speed: 35–40 bags/min

Sealing Specification

• Top seal width: 15 mm

• Bottom seal width: 15 mm

• Back seal width: 15 mm

Actual packaging speed may vary depending on product characteristics, bag dimensions, filling weight, and packaging film.

Nitrogen Flushing for Snack Packaging

For potato chips, corn chips, and similar crispy snack products, the machine is equipped with a nitrogen flushing system.

Nitrogen flushing helps:

• Reduce oxygen inside the bag

• Protect product freshness

• Reduce oxidation

• Maintain crispness

• Improve product presentation

• Provide additional cushioning for fragile snack products

This makes the line particularly suitable for industrial snack packaging applications.

Auxiliary Equipment

The project also includes supporting compressed-air equipment:

• 15 kW oil-free air compressor

• Refrigerated air dryer

• 1000 L SUS304 air tank

• Spare parts for the packaging machine

• Spare parts for the compressed-air system

• Recommended wearing-parts list

Packaging Process

Snack feeding
→ Multihead weighing
→ Film forming
→ Product filling
→ Nitrogen flushing
→ Vertical sealing
→ Horizontal sealing
→ Date coding
→ Bag cutting
→ Finished bag discharge

The entire packaging process is automatically controlled to improve production consistency and reduce manual handling.

Advantages of This Packaging Solution

Multiple Bag Sizes

One packaging machine can handle 30 g, 100 g, 135 g, and 500 g snack packs.

Accurate Multihead Weighing

The 14-head multihead weigher provides fast and accurate combination weighing for lightweight snack products.

Nitrogen Flushing

Suitable for products where freshness, crispness, and package protection are important.

Siemens Control System

Provides stable control and convenient machine operation.

Spanish Interface

The HMI includes Spanish, making operation and training easier for the customer's local production team.

Flexible Packaging

Suitable for different snack weights, bag dimensions, and packaging films.

Suitable Products

This packaging system can be used for a wide range of snack products, including:

• Potato chips

• Corn chips

• Tortilla chips

• Crispy snacks

• Extruded snacks

• Puffed snacks

• Crackers

• Biscuits

• Popcorn

• Fried snacks

• Nuts

• Other lightweight granular or irregular snack products

Project Summary

Samfull supplied this customer in Peru with an automatic vertical snack packaging machine equipped with a 14-head multihead weigher and nitrogen flushing system.

With four different bag-former configurations, the customer can package products from 30 g to 500 g using one production line.

The solution provides a flexible and efficient packaging system for manufacturers producing multiple snack sizes for retail and wholesale markets.
