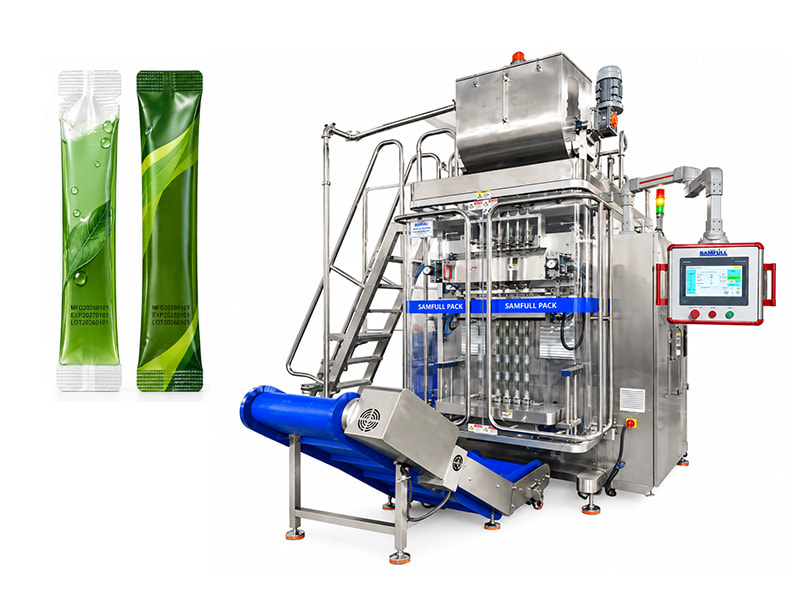

Multi-Lane Liquid Jelly Stick Filling Sealing Machine for Collagen Protein Gel
The Multi-Lane Liquid Jelly Stick Filling and Sealing Machine is designed for high-speed packaging of collagen jelly, protein gel, fibre jelly, creatine gel, energy gel and other viscous liquid products.
It integrates automatic dosing, stick pack forming, filling, sealing, cutting and discharge in one system. The machine can be configured for hot filling at approximately 60–80°C and high-viscosity products.
Applications
Suitable for:
Collagen jelly sticks
Protein gel
Fibre jelly
Creatine gel
Energy gel
Vitamin jelly
Nutritional gel
Gummy jelly
Liquid supplements
Functional beverages
Syrup
Sauce
Other viscous liquid products
Suitable for health supplement, nutrition, pharmaceutical, food and beverage industries.
Videos
Main Specifications
| Item | Specification |
|---|---|
| Machine Type | Multi-Lane Liquid Stick Packing Machine |
| Number of Lanes | 4–10 Lanes Available |
| Typical Configuration | 6 Lanes |
| Filling System | Piston Pump / Servo Pump |
| Filling Volume | 10–20 ml or Customized |
| Filling Temperature | Up to Approx. 60–80°C |
| Speed | Approx. 30–35 cycles/min |
| Output | Depends on Number of Lanes |
| Typical 6-Lane Output | Approx. 180–210 sticks/min |
| Sachet Type | Stick Pack / Special Shape Sachet |
| Typical Sachet Size | 30 × 120 mm |
| Machine Material | SUS304 |
| Product Contact Parts | SUS304 / SUS316 |
| Control System | Siemens |
| Packaging Film | Laminated Film / Aluminum Foil |
| Cleaning System | CIP Available |
| Power Supply | Customized |
Machine specifications can be customized according to product viscosity, filling volume, temperature, sachet size and required output.
Hot Fill Viscous Jelly Filling
The machine can be configured for hot-filled viscous jelly and gel products.
Available solutions include:
Heated hopper
Heated pipeline
Temperature control
Piston pump filling
Servo pump filling
Agitation system
Customized filling nozzles
CIP cleaning system
This helps maintain stable filling performance for thick and temperature-sensitive products.
Accurate Piston Pump Filling
The piston pump filling system is suitable for jelly, gel and viscous liquid products requiring accurate and repeatable dosing.
Main advantages:
Stable filling volume
High filling accuracy
Suitable for high viscosity
Easy parameter adjustment
Easy cleaning and maintenance
Suitable for hot filling
Multi-Lane High Speed Production
Multiple lanes operate simultaneously to increase production capacity.
For example:
4 lanes: approx. 120–140 sticks/min
6 lanes: approx. 180–210 sticks/min
8 lanes: approx. 240–280 sticks/min
10 lanes: approx. 300–350 sticks/min
Actual speed depends on product viscosity, filling volume, sachet length and sealing conditions.
Flexible Stick Pack Design
The machine supports different stick pack formats, including:
Standard stick packs
Round-corner sachets
Special-shaped sachets
Easy-tear opening
Different sachet lengths
Different filling volumes
Packaging design can be customized according to different supplement products and SKUs.
SUS316 Product Contact Parts
For collagen, protein, fibre, creatine and other nutritional products, SUS316 stainless steel product-contact parts are available.
This configuration is suitable for food, supplement and pharmaceutical hygiene requirements.
CIP Cleaning System
A CIP cleaning function can be integrated for easier cleaning of:
Product hopper
Filling pipeline
Pump
Filling nozzles
This is especially useful for jelly, gel and viscous liquid production with frequent product changeovers.
Complete Jelly Stick Production Line
The machine can operate independently or connect with upstream and downstream equipment.
Optional Equipment
Cooking and mixing kettle
Buffer tank
Heating system
CIP cleaning system
Cooling tunnel
Pasteurization system
Sachet counting system
Checkweigher
Metal detector
Cartoning machine
Case packing machine
Robotic palletizing system
This allows customers to build a complete line from mixing and hot filling to cooling, counting and secondary packaging.
Main Features
High-speed multi-lane production
Suitable for hot-filled jelly and gel
Piston pump or servo pump filling
Accurate dosing
Stable sealing
Siemens control system
SUS316 contact parts available
CIP cleaning available
Flexible stick pack sizes
Special shape sachets available
Easy integration with counting and cartoning systems
High configuration and high cost-performance
Suitable for Health & Wellness Products
The machine is suitable for manufacturers producing:
Collagen supplements
Protein supplements
Fibre supplements
Creatine products
Energy nutrition products
Functional jelly
Sports nutrition gel
Nutritional supplements
Different filling systems and machine configurations can be selected according to viscosity, temperature and production capacity.
FAQ
Can the machine fill hot jelly at 60–80°C?
Yes. The filling system can be configured with heating and temperature control for hot-fill jelly and viscous liquid products.
Is the machine suitable for collagen and protein jelly sticks?
Yes. It can pack collagen, protein, fibre, creatine and other nutritional jelly or gel products.
What filling system is recommended?
For viscous jelly and gel, a piston pump or servo-controlled pump system is commonly used.
Can SUS316 contact parts be supplied?
Yes. SUS316 product-contact parts can be supplied according to food, supplement or pharmaceutical requirements.
Can the machine include CIP cleaning?
Yes. CIP cleaning can be integrated into the filling system.
Can it connect with counting and cartoning equipment?
Yes. The machine can connect with counting, checkweighing, cartoning, case packing and other secondary packaging systems.
