The Grain Cereal Linear Weigher Packing Machine
More and more factory choose the grain cereal linear packing machine, the machine can realize full automation of packaging, from material feeding, delivery, measuring, film pulling, date printing, bag making, filling, sealing, cutting to product conveyor.
Why choose the fully grain cereal linear packing machine?
1. With the high production demand of the factory capacity.
2. The realization of packaging automation can ensure product quality, beautify packaging.
3. Improve the product competitiveness and greatly reduce production costs.
Why to choose our grain cereal linear packing machine?
1. New design
2. Good-looking
3. Compact structure and save factory space
4. Good quality and running stable
5. Easy to operate
6. High grade finish product bag
Here is our grain cereal linear packing machine video for 450g small granule grains.
This packing speed of this full set grain cereal linear packing machine is about 20-35 bags per minute.
The packing range:
Measuring range: 200-3000g
Max roll film width: 520mm
Bag length: 80-400mm
Bag width: 80-250mm
We have different model grain cereal linear packing machine, we will according to your specific product weight, bag type and bag dimension, speed requirement to recommend the suitable model grain cereal linear packing machine. If your bag dimensions fall within the machine packing scope, our grain cereal linear packing machine can pack products with different weights.
Grain cereal linear packing machine is widely use for different kinds of granule products, such as bean, nut, grain, sugar, frozen fruits,chip, dried fruit etc. So it is OK for our customer use the same grain cereal linear packing machine to pack different kinds of small granule products.
Grain cereal linear packing machine is suitable for different kinds of bag type, such as pillow bag and gusset bag, stand up quad seal bag etc.
Pillow bag and gusset bag are the most common bag types our customer to use, they can use the same main machine, because the gusset bag main machine just need to add an gusset device.

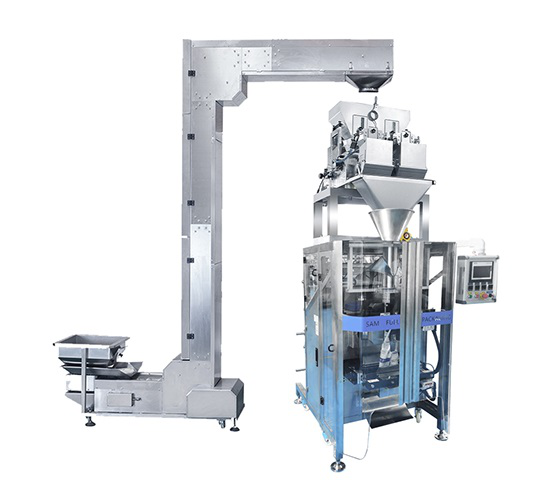

Our grain cereal linear packing machine is consist of the main machine+two heads/four heads weigher+ z-shaped elevator+ finish product conveyor.
Main machine: it can finish roll film pulling, bag making, material filling, bag sealing and bag cutting.
Two heads/four heads weigher: it can weigh the product to meet the specific our customer expectation weight.
Z-shaped elevator：it is used to feed the material to the weigher
Finish product conveyor：
Finish product conveyor: it can deliver the finish bag product out of the machine.
Grain cereal linear packing machine can use different weigher, includes two heads weigher and four heads weigher.
The more heads weigher, the faster speed and higher accuracy.
A. 4 heads weigher packing speed is faster than 2 heads
B. 4 heads weigher accuracy is higher than 4 heads
The hopper with different volume, we will use larger volume weigher hopper for larger weights products, and smaller volume for smaller weights products, so the fast and accuracy is no low.

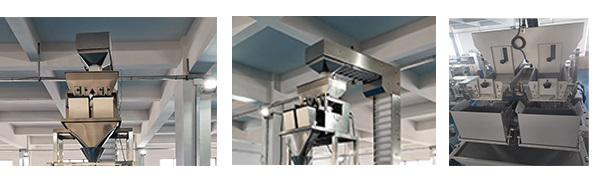

Four heads weigher
Two heads weigher
The frame of grain cereal linear packing machine is made of 304 stainless steel, which meets the hygienic standard of food QS and medicine GMP. The machine is equipped with safety protection, meet the requirement of enterprise safety management.
When our customer want to pack different weights and different bag width, the machine just need to change the bag forming tube. Our new model packing machine is very easy to change the bag forming tube, only need loosen the screw and change the another bag forming tube and then tighten the screw.
Here is the video shown how to change the bag forming tube
